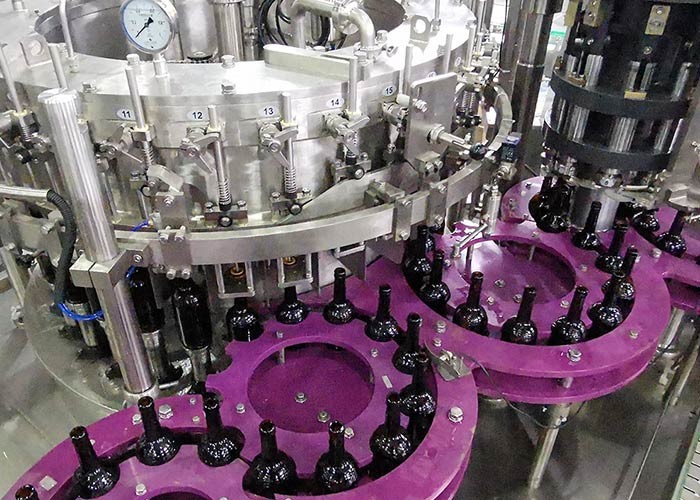

Efficient Automatic Beer Bottling System for Craft Breweries

Efficient Automatic Beer Bottling System for Craft Breweries
Efficient Automatic Beer Bottling System for Craft Breweries
Efficient Automatic Beer Bottling System for Craft Breweries Efficient Automatic Beer Bottling System for Craft Breweries Efficient Automatic Beer Bottling System for Craft Breweries Efficient Automatic Beer Bottling System for Craft Breweries Efficient Automatic Beer Bottling System for Craft Breweries Efficient Automatic Beer Bottling System for Craft Breweries Efficient Automatic Beer Bottling System for Craft Breweries Efficient Automatic Beer Bottling System for Craft Breweries Efficient Automatic Beer Bottling System for Craft Breweries Efficient Automatic Beer Bottling System for Craft Breweries Efficient Automatic Beer Bottling System for Craft Breweries Efficient Automatic Beer Bottling System for Craft Breweries Efficient Automatic Beer Bottling System for Craft Breweries Efficient Automatic Beer Bottling System for Craft Breweries Efficient Automatic Beer Bottling System for Craft Breweries Efficient Automatic Beer Bottling System for Craft Breweries
Grundlegende Informationen
Herkunftsort: China
Markenname: Sunswell
Zertifizierung: CE, ISO
Modellnummer: CGF
Min Bestellmenge: 1 Satz
Preis: USD 20000/set
Verpackung Informationen: Seefahrfähige Holzkästen und Umschlagfolie
Lieferzeit: 50 Tage
Zahlungsbedingungen: D/A, L/C, D/P, T/T, MoneyGram, Western Union
Versorgungsmaterial-Fähigkeit: 10 Set/Sets pro Monat
Bestpreis Kontakt
Verpackungsart: Dosen, Flaschen, Stehbeutel, Taschen Verpackungsmaterial: Kunststoff, Papier, Glas
Angetriebener Typ: elektrisch Stromspannung: 380V
Abmessung (L*B*H): 6750*4835*2700mm Garantie: 1 Jahr
Gewicht: 7500 kg Wichtige Verkaufsargumente: Hohe Genauigkeit
Maschinenkapazität: 4000 BPH, 8000 BPH, 12000 BPH, 6000 BPH, 20000 BPH, 16000 BPH, 200 Füllmaterial: Bier, Milch, Wasser, Öl, Saft, Energy Drink, Sodawasser
Kernkomponenten: Motor, SPS, Getriebe, Getriebe Füllendes Accurancy: ± 2%
Füllskala: 250 ml bis 2000 ml

Efficient Automatic Beer Bottling System for Craft Breweries 0
Products Description

Glass Bottle Beer Filling Machine

Automatic glass bottle Soft drinks rinser filler capper 3-in-1 filling Triblock, combined with rinsing, filling and capping. It is
innovated and designed in the requirement of carbonated soft drinks, beer, energy drink, and soda water, on the basis of
introducing, digesting and absorbing advanced technology from Germany.

The machine is a full-automatic multiple-function washing, filling and capping unit. It is used in washing. filling and sealing
all kinds of carbonated drinks such as beer, soft drink, energy drink mineral water and pure water. The line has features of
unique design,new style, complete functions,multi-purpose, convenient in operation, compact construction, high automaticity. It is the best filling equipment in China.
Efficient Automatic Beer Bottling System for Craft Breweries 1

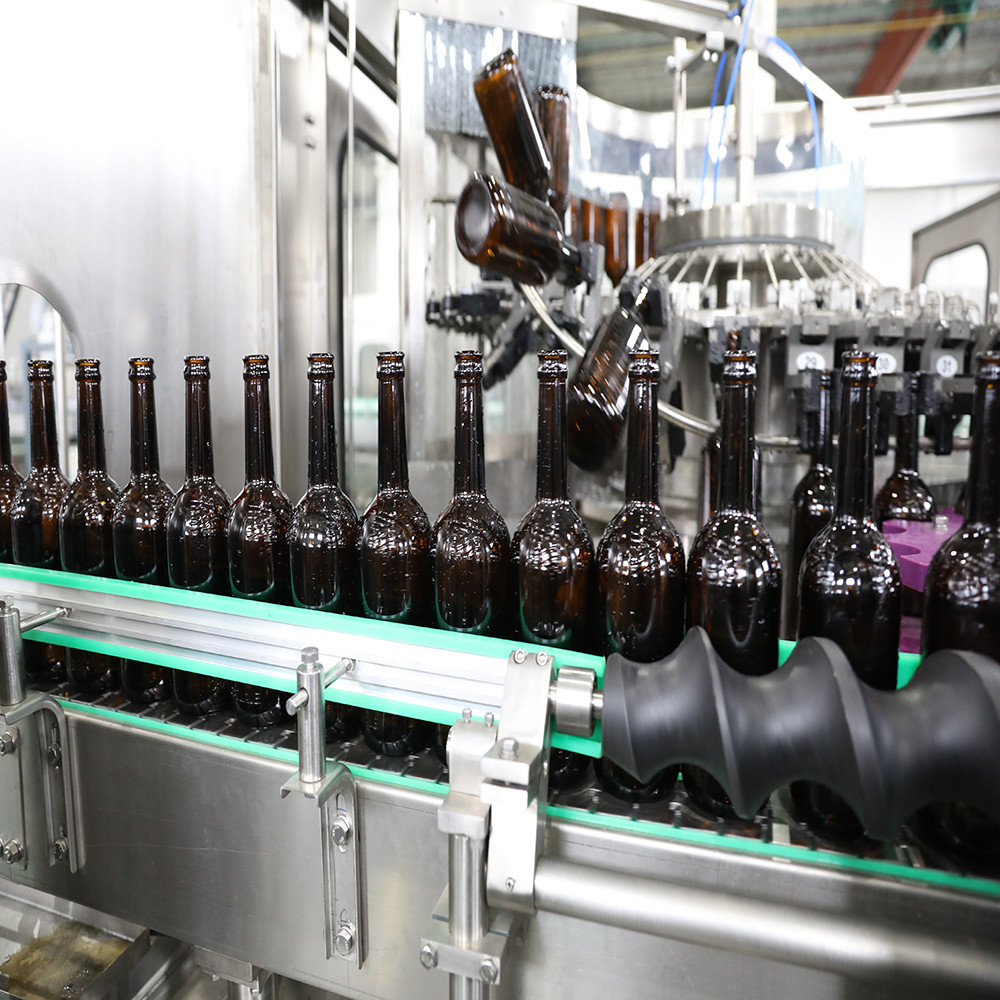

1. Glass bottle carbonated drink filler Triblock Bottle in-feed system
Inlet screw with star-wheel cooperate input the bottle, the suitable bottle is 250ml-2000ml.

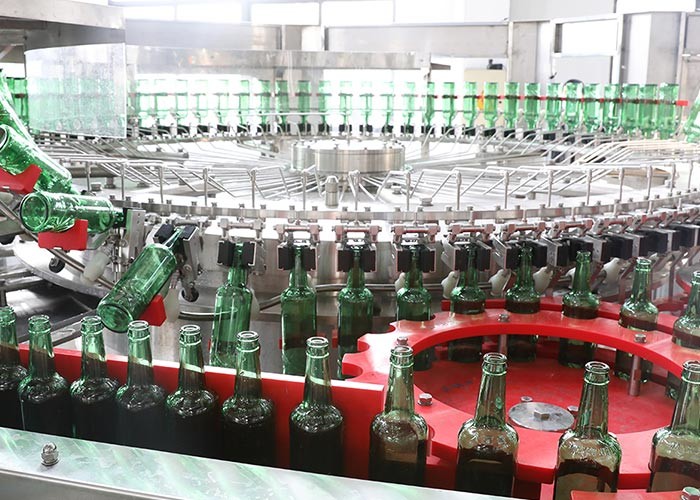

2.Glass bottle carbonated drink filler Triblock Rinser
Carbonated drinks filling machine is rotary washing machine, which mainly used for beverage such as beer or carbonated drink, new bottle enter the equipment by star wheel, through gripper and overturn mechanism make bottle down, after washing, it overturn
bottle up automatically, then convey to the filling part by star steel, the main material and washing gripper is stainless steel .
Efficient Automatic Beer Bottling System for Craft Breweries 2
Efficient Automatic Beer Bottling System for Craft Breweries 3

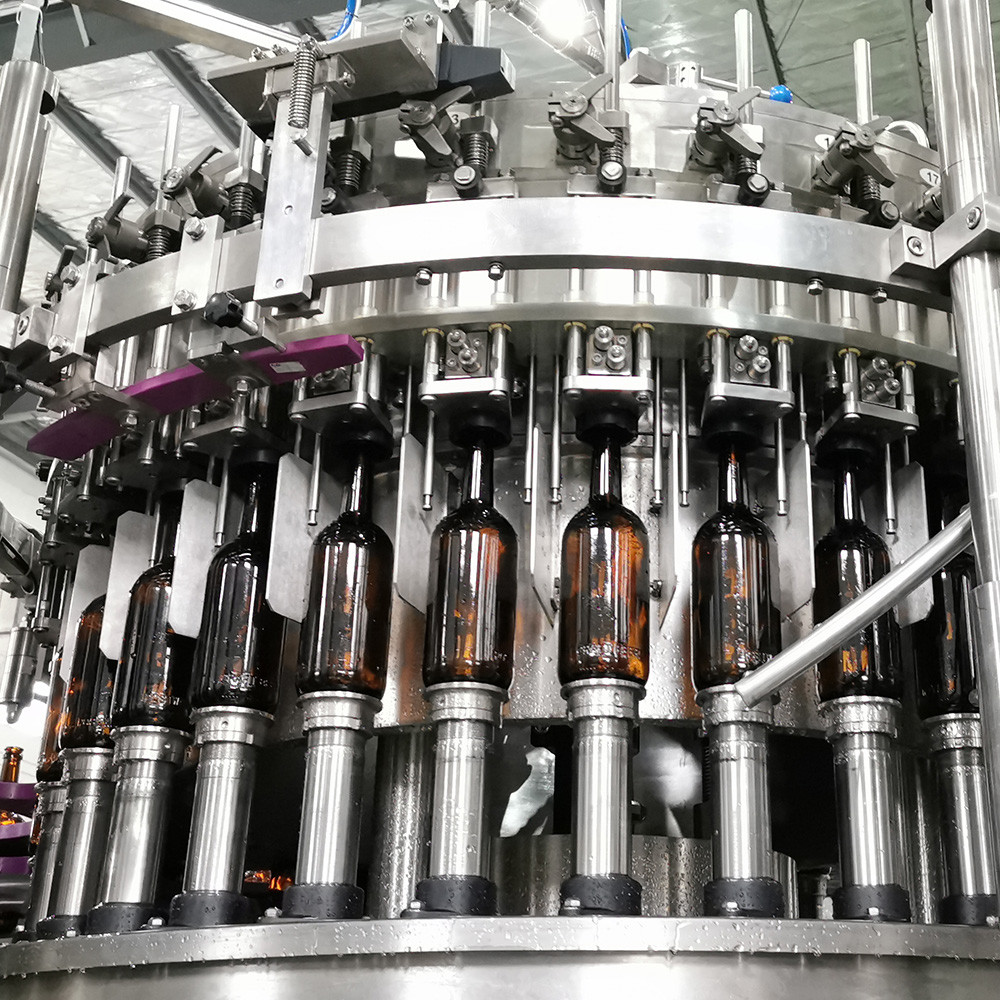

3. Glass bottle carbonated drink Triblock Filler

A. Filling valve use isobar machinery valve, double vacuum valve, or flow meter counter pressure filler valve, with High speed and
big flow, the high accuracy filling valve, filling speed fast, the liquid level is stable.
B.Main drive adopt gear drive independent, high efficiency, small noise, long life, maintenance-free, transducer can control the
main motor speed, the machine adopt Variable-frequency variable speed, whole operations area
Efficient Automatic Beer Bottling System for Craft Breweries 4

4. Glass bottle carbonated drink Triblock Capper

The bottle into the click wheel through the transition card bottleneck Capping Machine. Rotary Capping Machine knife stuck on the only bottleneck location, keeping the bottle upright and prevent rotation. Capping Machine Capping head to remain in the revolution and rotation, under the action of the cam to achieve grasping cap, capping, screw cap, cap off action, complete the capping process. Management Capping Machine is located in the top cover, through drop-cap rail and cover plate connected Capping
Machine allocated.
Efficient Automatic Beer Bottling System for Craft Breweries 5
Efficient Automatic Beer Bottling System for Craft Breweries 5
5.Output bottle star wheel part
Nylon wheel and conveyor belt cooperate output the bottle.

6.Output bottle conveyor belt part
Conveyor motor use frequency control of motor speed, which keep pace with the 3-1 machine. Prevent overturned bottle

7.Rack part
Rack is welded by high quality carbon steel, Antirust processing and spray surface. The surface is covered by the SUS304.

8.Electronic control system part
The electronic components like PLC and transducer are from Mitsubishi, Omron, etc., The pneumatic devices are also from
international famous brand.

9.Equipment structure
Base,Rotary rinser,Rotary filler,Rotary capper,Bottle infeed and outfeed system,Control

10.Main configuration
Touch screen: Pro-face
PLC program controller: Mitsubishi
Inverter: Mitsubishi
Photoelectrical controller: Banner
Proximity switch: Turck
Other electrical components: Siemens
Pneumatic component: Festo
Main motor: ABB
Filler Triblock Model
Filling Heads
Capacity 500ml
Bottle Size
Power
Dimension(mm)
Weight(KG)
DCGF14-12-5
12
3000BPH
200-2000ml
1.5kw
2200×1800 × 2000
2500
DCGF 18-18-6
18
5000BPH
200-2000ml
2.2kw
2500 × 1800 × 2300
3000
DCGF 24-24-8
24
700BPH
200-2000ml
3 kw
2800 × 2100 × 2300
3000
DCGF 32-32-10
32
9000BPH
200-2000ml
4 kw
3500 × 2200 × 2300
3500
DCGF 40-40-10
40
1200BPH
200-2000ml
4kw
4760 × 2080 × 2300
4000
DCGF 50-50-12
50
15000BPH
200-2000ml
5kw
5150 × 3820 × 2700
5000
DCGF 60-60-15
60
18000BPH
200-2000ml
5kw
5300 × 3950 × 2700
6500
DCGF 72-72-18
72
20000BPH
200-2000ml
6kw
6250 × 4773 × 2700
7500
