Advanced Automatic Water Bottling Filling Line for Bottles

Advanced Automatic Water Bottling Filling Line for Bottles
Advanced Automatic Water Bottling Filling Line for Bottles
Advanced Automatic Water Bottling Filling Line for Bottles Advanced Automatic Water Bottling Filling Line for Bottles Advanced Automatic Water Bottling Filling Line for Bottles Advanced Automatic Water Bottling Filling Line for Bottles Advanced Automatic Water Bottling Filling Line for Bottles Advanced Automatic Water Bottling Filling Line for Bottles Advanced Automatic Water Bottling Filling Line for Bottles Advanced Automatic Water Bottling Filling Line for Bottles Advanced Automatic Water Bottling Filling Line for Bottles Advanced Automatic Water Bottling Filling Line for Bottles Advanced Automatic Water Bottling Filling Line for Bottles Advanced Automatic Water Bottling Filling Line for Bottles Advanced Automatic Water Bottling Filling Line for Bottles Advanced Automatic Water Bottling Filling Line for Bottles Advanced Automatic Water Bottling Filling Line for Bottles Advanced Automatic Water Bottling Filling Line for Bottles
Grundlegende Informationen
Herkunftsort: China
Markenname: sunswell
Zertifizierung: ce
Modellnummer: ssw
Min Bestellmenge: 1 SATZ
Preis: 12000-120000
Lieferzeit: 90 Tage
Zahlungsbedingungen: L/C, D/A, D/P, T/T
Bestpreis Kontakt
Maschinerie-Name: Abgefülltes Mineralwasser, Abfüllung, Versiegelung, Mac Anwendung: Abfüllen und Verpacken von Wasser
Maschinenstruktur: Rinser, Füller, Verschließer 3 in 1 Monoblock Material: Edelstahl 304, 316L verfügbar
Produktverpackung: Plastikflasche, Haustierflasche, Aluminiumflasche, Glas Funktion: Spüler-Füller-Verschließer Spüler-Füller-Verschließer
Flaschenvolumen: 200 ml-2200 ml Kapazität: 5000-40000 Flaschen pro Stunde
Füllgenauigkeit: 0,5 %

Advanced Automatic Water Bottling Filling Line for Bottles

Description:

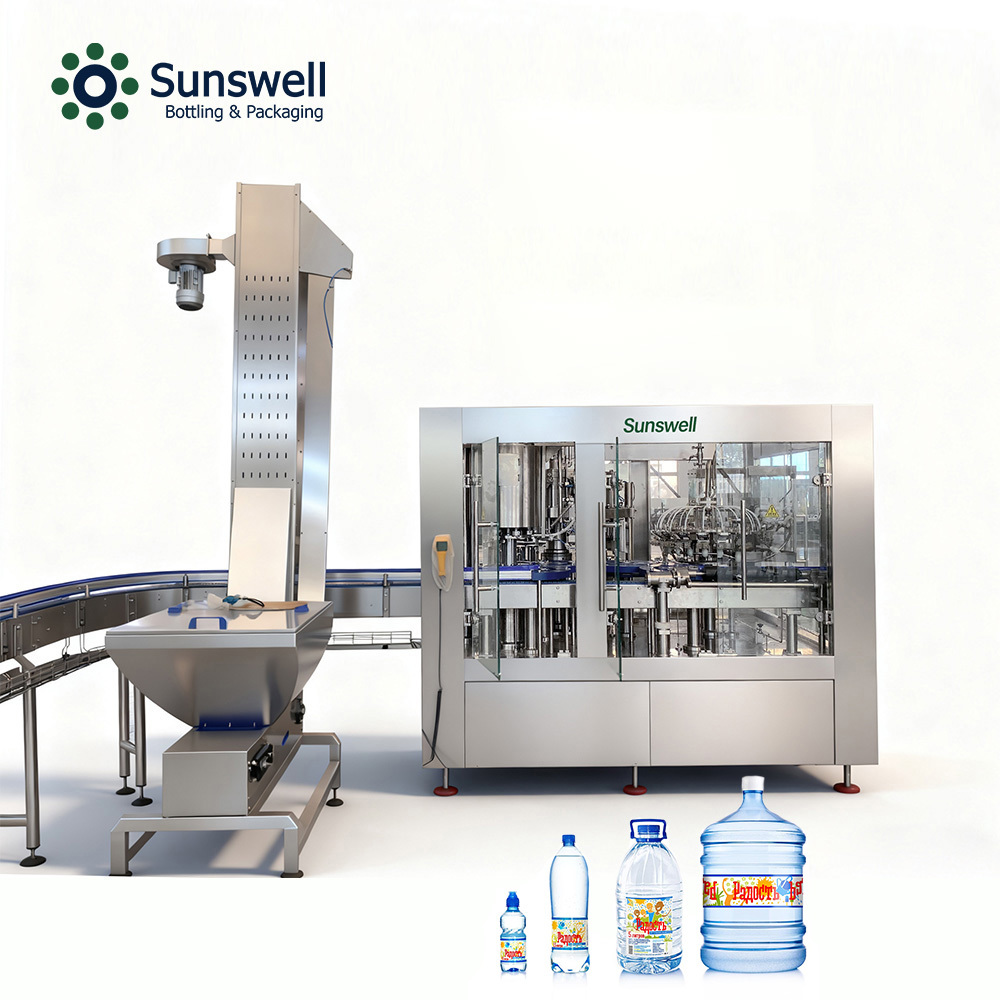

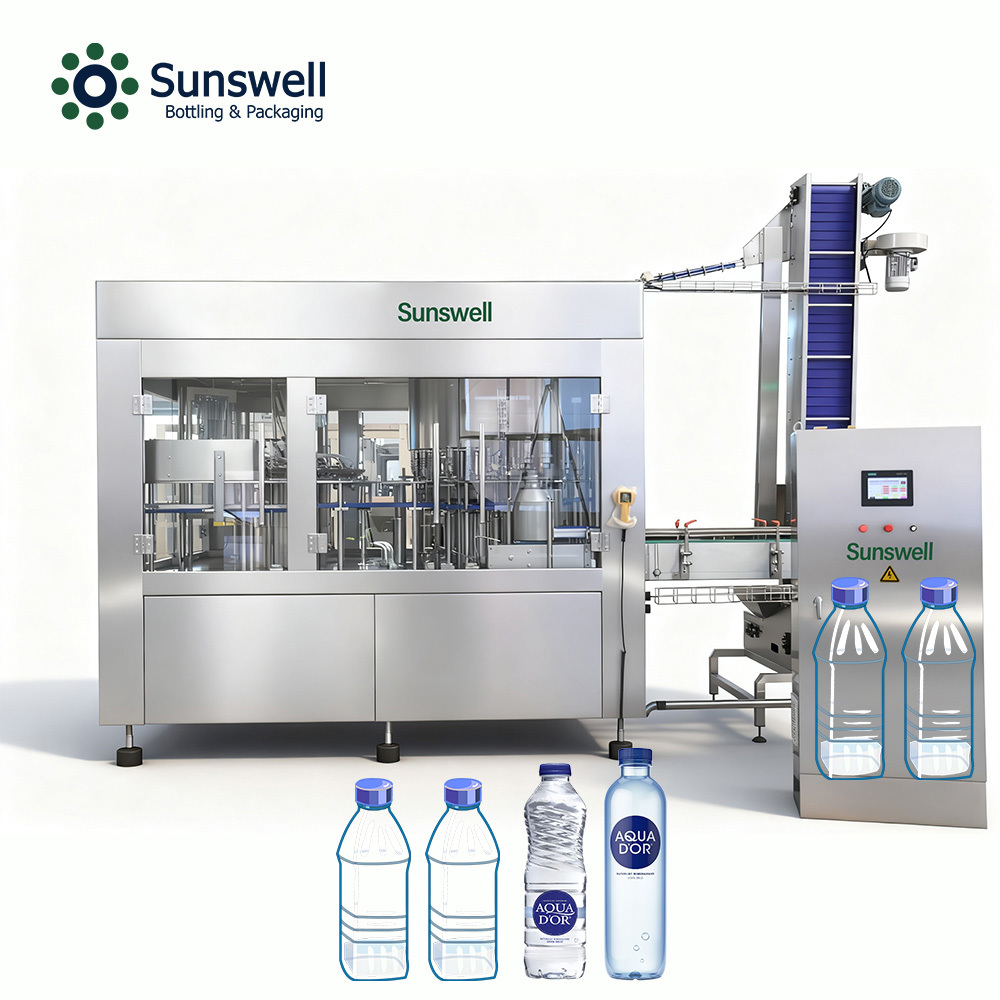

3 in 1 monoblock bottle water making machine can be applied to the production of mineral water, purified water, flavor water and low alcoholic drinks, etc.The water filler machine can be used for different water filling line.
The whole machine is mainly composed of rinser, filler and capper.

Advanced Automatic Water Bottling Filling Line for Bottles 0

Advanced Automatic Water Bottling Filling Line for Bottles 1

Model
CGF12125
CGF18186
CGF24248
CGF323210
CGF404012
CGF505012
washing, filling and capping heads
12-12-5
18-18-6
24-24-8
32-32-10
40-40-12
50-50-12
Production capacity(600ml)

(B/H)
2000-4000
5000-7000
8000-12000
12000-15000
16000-20000
20000-24000
Motor power(kw)
2.2kw
2.2kw
3kw
5.5kw
7.5kw
11kw
Weight (kg)
2500
3500
4500






Main features:

Advanced Automatic Water Bottling Filling Line for Bottles 2

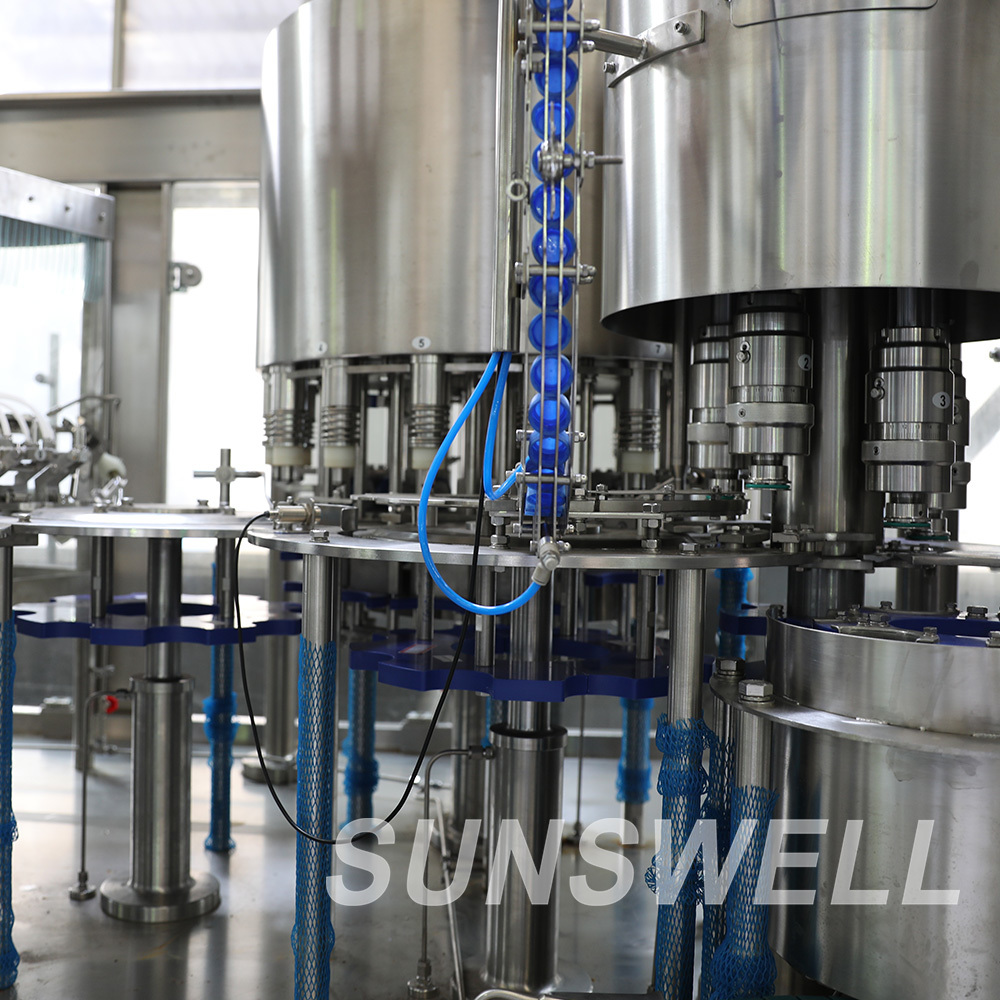

The rotary wheel is a fully sus304 stainless steel welded structure.
The machine applies unique overturning bottle clamp, which is an innovation of our company.This bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle clamp.Made of sus304 stainless steel, this bottle clamp is hygienic and durable.
The high efficiency atomizing spay nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and also saves rinsing water.
All sliding bushes of lifting device use igus (germany) anti-corrosion maintenance free bearing.
The rinser is driven by driving system positioned inside machine frame via gear transmission.
Transfer starwheel
Made of stainless steel of superior quality.
Equipped with bottle jam protection device.
Advanced Automatic Water Bottling Filling Line for Bottles 3
The rotary wheel is a fully sus304 stainless steel welded structure.
The machine applies unique overturning bottle clamp, which is an innovation of our company.This bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle clamp.Made of sus304 stainless steel, this bottle clamp is hygienic and durable.
The high efficiency atomizing spay nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and also saves rinsing water.
All sliding bushes of lifting device use igus (germany) anti-corrosion maintenance free bearing.
The rinser is driven by driving system positioned inside machine frame via gear transmission.
Transfer starwheel
Made of stainless steel of superior quality.
Equipped with bottle jam protection device.
Advanced Automatic Water Bottling Filling Line for Bottles 4
The rotary wheel is a fully sus304 stainless steel welded structure.
The machine applies unique overturning bottle clamp, which is an innovation of our company.This bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle clamp.Made of sus304 stainless steel, this bottle clamp is hygienic and durable.
The high efficiency atomizing spay nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and also saves rinsing water.
All sliding bushes of lifting device use igus (germany) anti-corrosion maintenance free bearing.
The rinser is driven by driving system positioned inside machine frame via gear transmission.
Transfer starwheel
Made of stainless steel of superior quality.
Equipped with bottle jam protection device.
Advanced Automatic Water Bottling Filling Line for Bottles 5
The rotary wheel is a fully sus304 stainless steel welded structure.
The machine applies unique overturning bottle clamp, which is an innovation of our company.This bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle clamp.Made of sus304 stainless steel, this bottle clamp is hygienic and durable.
The high efficiency atomizing spay nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and also saves rinsing water.
All sliding bushes of lifting device use igus (germany) anti-corrosion maintenance free bearing.
The rinser is driven by driving system positioned inside machine frame via gear transmission.
Transfer starwheel
Made of stainless steel of superior quality.
Equipped with bottle jam protection device.
Advanced Automatic Water Bottling Filling Line for Bottles 6
FAQ:
Q1: which city are you in? how can I get to your factory? Are you a trading company or factory?
A1: We are in Zhangjiagang city, two hours driving from Shanghai. We are factory. Manufacturing mainly beverage filling and packagingmachines. We offer turnkey solutions with more than 10 years experience.

Q2: Why is your prices higher than others?
A2: We offer high-end machines in our business. Welcome to our factory to have a visit. And you will see the difference.

Q3: What is your delivery time?
A3: Normally 30-60 working days depends one machines, water machines are faster, carbonated drink machines are slower.

Q4: How to install my machines when it arrives? How much the cost?
A4: We will send our engineers to your factory to install the machines and train your staff how to operate the machines If needed. Or you can arrange engineers to study in our factory.
You are responsible for air tickets, accommodation and our engineer wage USD100/day/person.

Q5: How long time for installation?
A5: Subject to machines and the situation in your factory. If everything is ready, it will take about 10 days to 25 days.

Q6: How about the spare parts?
A6: We will send one year enough easy broken spare parts together with the machines for free, we suggest you buy more units to save international courier such as DHL, it is really costly.

Q7: What is your guarantee?
A7: We have one year guarantee and life-long technical support. Our service also including machine maintence.

Q8: What is your payment term?
A8: 30%T/T in advance as down payment, rest should be paid before shipping. L/C is supported also.


Any more questions, pls feel free to contact me !
